WaterLink® Spin Lab

WaterLink Spin Lab

A New Spin on Precision Water Analysis

• So Simple Anyone Can Use It!
• Just Fill Disk With Sample and Spin
• All Test Results in 60 Seconds
• Precise Wet Chemistry
• Pre-measured Reagents and Sample Amounts

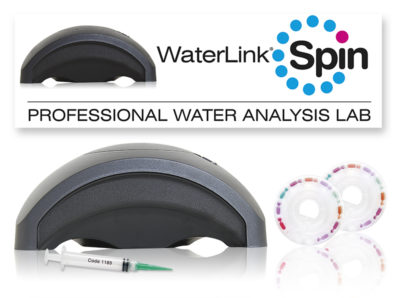

WaterLink® Spin Lab

Code LM3576

2 Year Warranty

A revolutionary, new in-store lab is here! Now let the innovative WaterLink^® Spin photometer do all your pool and spa water testing for you. Just fill one unique Spin reagent disk with water and vital tests are done automatically.

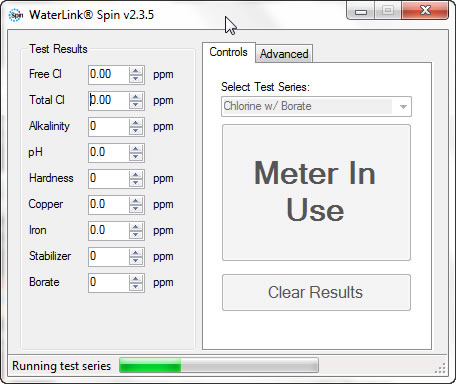

In just 60 seconds all the test results are transferred into the DataMate software (sold separately) and analyzed to display results and recommend precise treatment instructions. Remove the disk and you are ready for the next customer.

This ground-breaking analysis method is so simple anyone can do it! Each sealed reagent disk contains the precise amount of reagent needed to run a complete series of tests. No measuring water, no vials, no prep time!

1.Inject Water Into Disk

2.Insert Disk Into Reader

3.Click “Run Test”

Just Fill and Spin

LaMotte’s Research and Development team spent 7 years pioneering this new technology. All you do is add pool or spa water to the disk to measure all of the tests in just 60 seconds. It’s the most advanced system for precise use of wet chemistry methods ever produced. Now in-store pool and spa analysts can achieve greater precision than current water labs without time consuming procedures or sacrificing accuracy by using test strip scanners.

Click here for WaterLink^®Spin brochure

WaterLink® Spin Disks

Chlorine/Bromine Disk • Code 4328-H (50/pk)
Test Factor	Range
Free Chlorine	0-15.0 ppm
Total Chlorine	0-15.0 ppm
Bromine	0-33.0 ppm
pH	6.3-8.6 pH
Calcium Hardness	0-1200 ppm
Total Alkalinity	0-250 ppm
Cyanuric Acid	5-150 ppm
Copper	0-3.0 ppm
Iron	0-3.0 ppm

Includes 100 Chlorine Disks (2 boxes of 4328-H) with lab.
Patent No. 8,734,734

Chlorine/Bromine plus Borate Disk* • Code 4330-H (50/pk)
Test Factor	Range
Free Chlorine	0-15.0 ppm
Total Chlorine	0-15.0 ppm
Bromine	0-33.0 ppm
pH	6.3-8.6 pH
Calcium Hardness	0-1200 ppm
Total Alkalinity	0-250 ppm
Cyanuric Acid	5-150 ppm
Copper	0-3.0 ppm
Iron	0-3.0 ppm
Borate	0-60 ppm

*Disks sold separately.
Patent No. 8,734,734

Biguanide plus Borate Disk* • Code 4331-H (50/pk) (50/pk)
Test Factor	Range
Biguanide	0-70 ppm
Biguanide Shock	0-250 ppm
pH	6.3-8.6 pH
Calcium Hardness	0-1200 ppm
Total Alkalinity	0-250 ppm
Copper	0-3.0 ppm
Iron	0-3.0 ppm
Borate	0-60 ppm

*Disks sold separately.
Patent No. 8,734,734

Hardware Requirements:

• 3 GHz Intel^® Pentium^® IV, Core 2 processor or higher
• 1 GB RAM or more
• Minimum disk space: x86 (32 bit) – 850 MB x64 (64 bit) – 2 GB
• High Speed USB 2.0 Port Available

DataMate Web Software Requirements:

• Supported browsers include Internet Explorer^® 10 or 11
and Google Chrome™
• Microsoft .Net^® Framework 4.0 required for use with
a WaterLink analysis device
• Consult your local LaMotte representative for currently
supported mobile devices

DataMate Software Requirements:
• Supported Operating Systems: Microsoft^® Windows
^® 7; Windows Server^®
2003 Service Pack 2; Windows Vista^® Service Pack 1; Windows^® XP Service Pack 3
• Prerequisites: Windows^® Installer 4.5 or later
• Internet Explorer^® 5.01 or later
